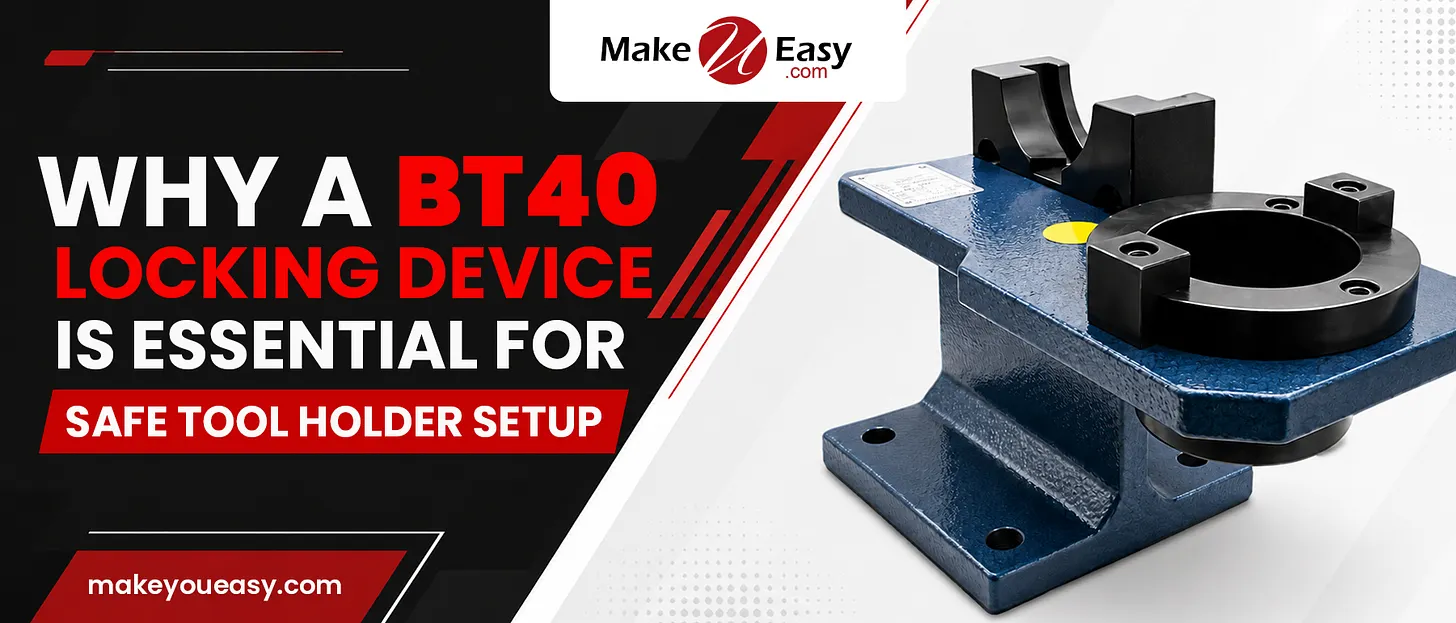

Why a BT40 Locking Device Is Essential for Safe Tool Holder Setup

Author : Surya makeyoueasy | Published On : 25 Aug 2026

Introduction

A BT40 locking device is a practical CNC tool setup accessory designed to securely hold a BT40 tool holder while operators install, remove, or tighten cutting tools and related components. Keeping the holder stable during assembly, it helps make tool preparation safer, faster, and more consistent while reducing the risk of accidental movement or damage to the tool holder.

What Is a BT40 Locking Device?

A BT40 locking device, also known as a BT40 tool holder tightening fixture or tool holder locking fixture, is used to securely support a BT40 tool holder outside the CNC machine.

It provides a stable platform when working with components such as:

ER collet chucks
Collet nuts
End mill holders
Face mill holders
Pull studs
Cutting tools
Other compatible BT40 tooling

Instead of trying to hold the tool holder manually while tightening or loosening components, the locking device keeps it firmly positioned.

Why Is a BT40 Locking Device Important?

BT40 tool holders require proper assembly to achieve reliable machining performance.

When a tool holder is not securely supported during setup, it may:

Slip during tightening
Rotate unexpectedly
Damage the holder surface
Make proper tightening difficult
Increase setup time
Create unnecessary handling risks

A BT40 tool holder locking device provides a dedicated fixture for safer and more controlled tool preparation.

Key Features of a BT40 Locking Device

1. Secure Tool Holder Positioning

The primary purpose of the device is to keep the BT40 holder stable during tool assembly and removal.

This allows operators to work with better control.

2. BT40-Compatible Design

The fixture is specifically designed around the geometry of a BT40 tool holder.

Correct compatibility helps ensure the holder is supported in the intended position.

3. Rigid Construction

A quality locking device should provide sufficient rigidity to withstand the forces generated while tightening and loosening tooling components.

4. Convenient Tool Setup

The holder can be positioned securely outside the machine, making routine tool preparation more convenient.

5. Bench-Mounting Capability

Depending on the model, locking devices may be designed for installation on a workbench or a dedicated CNC tool setup station.

A securely mounted fixture provides greater stability during use.

How Does a BT40 Locking Device Work?

Using a BT40 locking fixture is generally straightforward, although the exact procedure depends on the product design.

A typical setup involves:

Securely mount the locking device according to the manufacturer’s instructions.
Place the BT40 tool holder into the compatible fixture.
Confirm that the holder is properly seated and locked.
Install or remove the required cutting tool or accessory.
Use the appropriate wrench and recommended tightening procedure.
Release the holder from the locking device after setup is complete.
Inspect the assembled tool holder before loading it into the CNC machine.

Always follow the tool holder and accessory manufacturer’s specified tightening torque where applicable.

Benefits of Using a BT40 Locking Device

Safer Tool Setup

Securely supporting the holder reduces unexpected movement during assembly and provides better control when using tightening tools.

Faster Tool Changes

A dedicated setup fixture simplifies routine preparation, helping operators complete tool changes more efficiently.

Consistent Tightening

A stable holder makes it easier to apply the required tightening procedure consistently.

This is especially useful when using a torque wrench with components that specify a tightening torque.

Reduced Tool Holder Damage

Improvised clamping methods can mark or damage precision toolholder surfaces.

Using a properly designed locking device helps avoid unnecessary contact with sensitive areas of the holder.

Better Workshop Organization

A dedicated BT40 setup station creates a defined location for assembling and maintaining tool holders.

This can make CNC tooling management cleaner and more efficient.

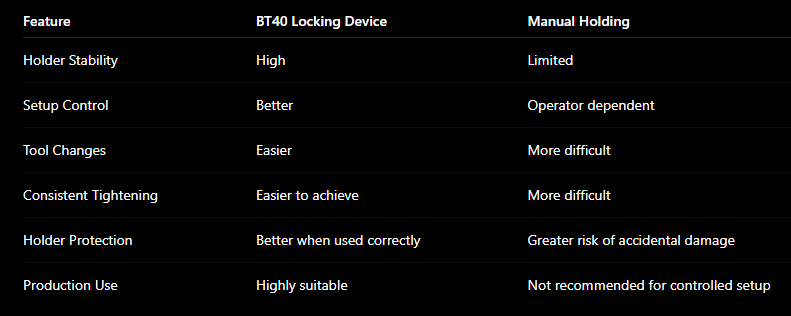

BT40 Locking Device vs Manual Holding

For professional CNC workshops, a dedicated locking fixture provides a more controlled method of tool holder assembly.

Where Is a BT40 Locking Device Used?

BT40 locking devices are commonly useful in:

CNC machine shops
VMC machining facilities
Tool rooms
Automotive component manufacturing
Mold and die workshops
Precision engineering companies
CNC production facilities
General manufacturing
Tool presetting areas
CNC training centers

Any facility using multiple BT40 tool holders can benefit from a dedicated setup fixture.

How to Choose a BT40 Locking Device

Check BT40 Compatibility

Ensure the fixture is specifically designed for the BT40 tool holders you use.

Look for Rigid Construction

The device should remain stable while tightening or loosening tooling components.

Check Mounting Options

Choose a design that can be securely installed on your workbench or tool preparation station.

Consider Ease of Operation

The holder should be easy to insert, secure, release, and remove without unnecessary handling.

Protect Precision Surfaces

A suitable fixture should support the tool holder correctly without damaging the Device incritical taper or functional surfaces.

Tips for Safe Tool Holder Setup

For reliable BT40 tool preparation:

Secure the locking fixture properly before use.
Confirm the holder is fully seated.
Keep the fixture and holder clean.
Use the correct spanner or wrench.
Follow the specified tightening torque.
Avoid excessive tightening force.
Inspect collets, nuts, and holders for damage.
Never use a visibly damaged locking device.
Check the complete tool assembly before loading it into the machine.

The locking device improves setup control, but correct tooling procedures remain essential.

Common Mistakes to Avoid

Using the Wrong Fixture Size

A fixture designed for another taper size may not properly support a BT40 holder.

Improvised Clamping

Avoid gripping precision tool holders directly in unsuitable workshop vices or other improvised fixtures.

Excessive Tightening

Over-tightening can damage collets, nuts, threads, or other tooling components.

Ignoring Tool Holder Condition

Always inspect the holder, collet, nut, and cutting tool before assembly.

Poor Fixture Mounting

A locking device that is not securely installed can move during tightening and reduce setup control.

Why Choose MakeYouEasy?

At MakeYouEasy, we provide CNC tooling and industrial accessories for professional machining and tool setup applications.

Our product range includes:

BT40 Locking Devices
BT Tool Holders
ER Collets
ER Collet Chucks
Pull Studs
Face Mill Holders
Milling Cutters
U Drills
Turning Inserts
Precision Measuring Instruments

Explore CNC tools and accessories: MakeYouEasy

Conclusion

A BT40 locking device is an essential accessory for controlled and efficient tool holder setup. By securely supporting the BT40 holder during assembly, tightening, and tool changes, it helps improve setup safety, consistency, and convenience while reducing the risk of accidental holder damage.

For CNC workshops that regularly use BT40 tooling, investing in a suitable locking fixture can simplify tool preparation, reduce setup time, and support a more organized machining workflow.

Frequently Asked Questions

1. What is a BT40 locking device used for?
A BT40 locking device securely holds a BT40 tool holder during cutting-tool installation, removal, and tightening.

2. Why should I use a locking device for BT40 tool holders?
It provides a stable setup that improves handling, tightening control, and overall tool preparation safety.

3. Can a BT40 locking device prevent tool holder damage?
Yes, a correctly designed and used fixture can reduce the risk of damage caused by slipping or improper clamping.

4. Can I use a BT40 locking device for BT30 or BT50 holders?
Only use other taper sizes if the locking device is specifically designed or supplied with compatible interfaces for them.

5. Is a BT40 locking device useful for CNC workshops?
Yes, it is especially useful for workshops that frequently assemble, change, or maintain BT40 tool holders.
