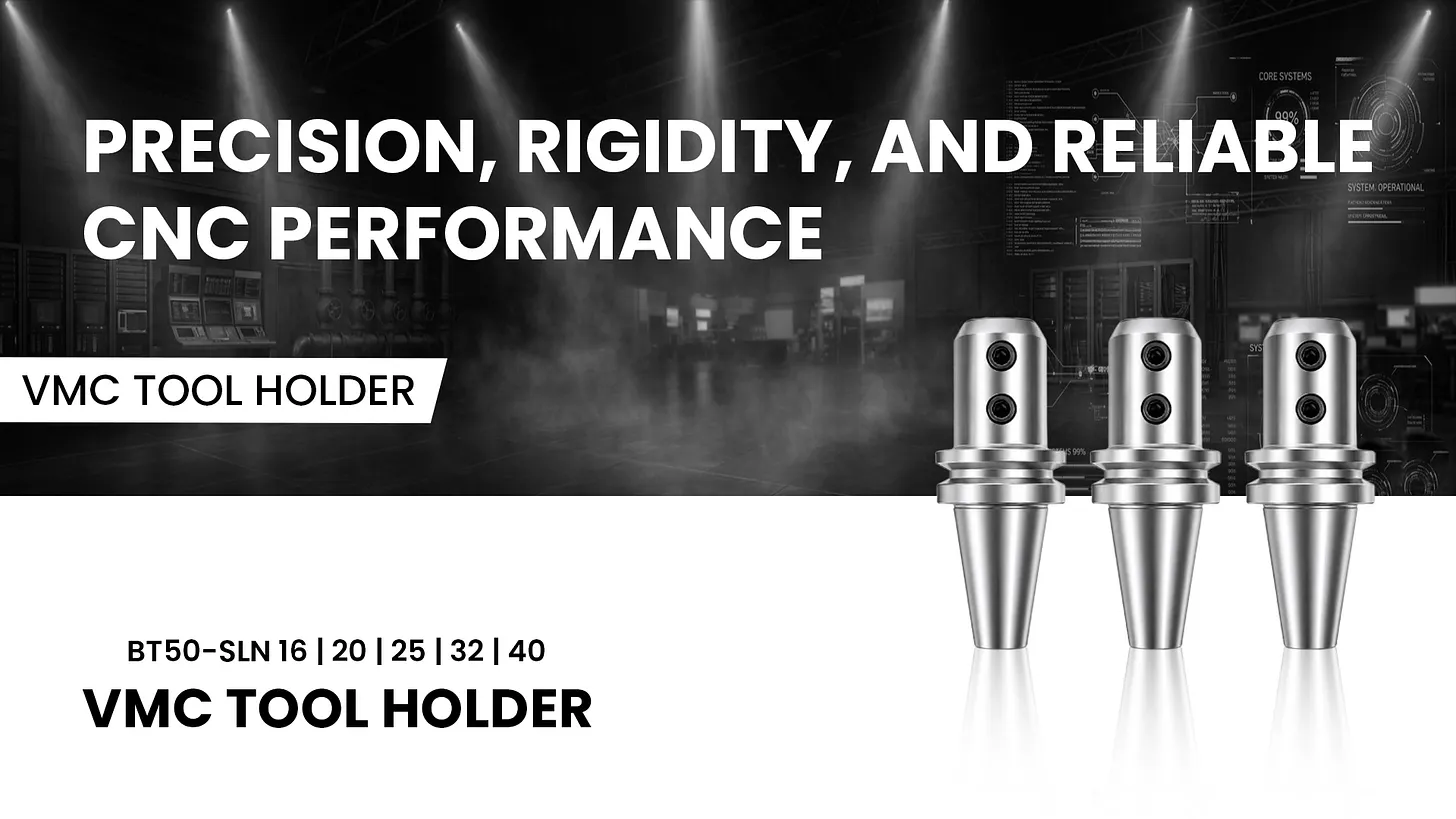

VMC Tool Holder: Precision, Rigidity, and Reliable CNC Performance

Author : Surya makeyoueasy | Published On : 09 Jul 2026

Introduction

In CNC machining, the quality of your tool holder directly impacts machining accuracy, surface finish, and tool life. The BT50-SLN Side Lock End Mill Holder is designed for high-rigidity machining applications where secure clamping and consistent performance are essential. Available in 16mm, 20mm, 25mm, 32mm, and 40mm bore sizes, the BT50-SLN VMC Tool Holder is widely used in Vertical Machining Centers (VMCs) for holding Weldon shank end mills during heavy-duty milling operations.

Whether you’re machining steel, stainless steel, cast iron, or aluminum, the BT50-SLN Tool Holder provides exceptional gripping strength, minimal runout, and superior cutting stability, making it an indispensable accessory for modern CNC workshops.

What is a BT50-SLN Tool Holder?

The BT50-SLN Side Lock Tool Holder is a precision CNC tool holder manufactured according to the JIS MAS 403 (BT50) standard. It features a 7:24 steep taper and uses side locking screws to firmly secure Weldon flat end mills, ensuring maximum rigidity during aggressive cutting operations.

The “SLN” designation refers to the Side Lock End Mill Holder, which is specifically designed for tools with DIN1835-B (Weldon) shanks.

Key Features

✅ High Clamping Rigidity

The side-lock mechanism securely grips Weldon shank cutters, minimizing tool movement even under heavy cutting loads.

✅ Excellent Machining Accuracy

Precision-ground taper surfaces reduce runout, improving dimensional accuracy and delivering smoother surface finishes.

✅ Heavy-Duty Milling Performance

Designed for roughing and finishing applications with high cutting forces.

✅ Durable Construction

Manufactured from premium alloy steel with hardened and precision-ground surfaces for extended service life.

✅ Wide Compatibility

Compatible with most BT50 spindle VMC machines following the JIS MAS 403 standard.

✅ Better Tool Life

Stable tool holding minimizes vibration and chatter, helping extend cutter life and improve machining consistency.

Applications

The BT50-SLN Tool Holder is widely used for:

  • Face milling

  • Side milling

  • Slot milling

  • Profile milling

  • Rough machining

  • Heavy material removal

  • Precision finishing

  • Mold and die machining

  • Automotive component manufacturing

  • Aerospace machining

  • General engineering

Advantages of Using BT50-SLN Tool Holders

  • Strong grip on Weldon shank cutters

  • Reduced vibration during machining

  • Higher cutting stability

  • Improved surface finish

  • Better dimensional accuracy

  • Increased machining efficiency

  • Longer spindle and tool life

  • Suitable for high-production CNC machining

Industries That Use BT50-SLN Tool Holders

The BT50-SLN Side Lock Tool Holder is commonly used in:

  • CNC Machine Shops

  • Automotive Industry

  • Aerospace Manufacturing

  • Die & Mold Industry

  • Heavy Engineering

  • Precision Component Manufacturing

  • General Fabrication

  • Industrial Equipment Production

Why Choose BT50-SLN 16/20/25/32/40 Tool Holders?

Choosing the correct BT50-SLN Tool Holder ensures reliable cutter retention, improved machining precision, and consistent performance across demanding milling applications. With multiple bore sizes available, machinists can select the ideal holder for different cutter diameters while maintaining excellent rigidity and productivity.

Conclusion

The BT50-SLN 16/20/25/32/40 VMC Tool Holder is an excellent solution for machinists seeking dependable, high-precision tool holding for heavy-duty milling operations. Its robust side-lock design, superior rigidity, and compatibility with BT50 machining centers make it a preferred choice for professional CNC workshops.

Whether you’re performing rough machining or precision finishing, investing in a premium BT50-SLN Tool Holder helps improve machining accuracy, increase tool life, and maximize production efficiency.

Frequently Asked Questions (FAQs) – BT50-SLN 16/20/25/32/40 VMC Tool Holder

1. What is a BT50-SLN Tool Holder?

A BT50-SLN Tool Holder is a side lock (Weldon) end mill holder designed for BT50 spindle CNC machines. It securely holds Weldon shank end mills for high-precision milling operations.

2. What does “SLN” stand for?

SLN stands for Side Lock End Mill Holder, which uses locking screws to clamp end mills with Weldon flats firmly.

3. What machines are compatible with BT50-SLN Tool Holders?

BT50-SLN Tool Holders are compatible with CNC Vertical Machining Centers (VMCs), Horizontal Machining Centers (HMCs), and other machines equipped with a BT50 spindle.

4. What sizes are available?

BT50-SLN Tool Holders are commonly available in:

  • BT50-SLN16

  • BT50-SLN20

  • BT50-SLN25

  • BT50-SLN32

  • BT50-SLN40

5. What type of cutting tools can be used with this holder?

They are designed for Weldon shank end mills, including solid carbide, HSS, roughing, and indexable end mills.
