Introduction

Machining steel up to 55 HRC requires an end mill designed to withstand high cutting temperatures, abrasive wear, and demanding finishing conditions. An SC Ball Nose End Mill 55HRC, or solid carbide ball nose end mill, combines a rigid carbide body with a rounded cutting profile for 3D contouring, curved-surface machining, mold and die work, and precision finishing. The right tool geometry, carbide grade, coating, diameter, and tool length can significantly affect surface finish, tool life, and machining stability.

What Is an SC Ball Nose End Mill?

An SC Ball Nose End Mill is a Solid Carbide Ball Nose End Mill with a hemispherical cutting end.

Unlike a flat end mill, the rounded cutting edge is designed to follow changing 3D profiles and curved surfaces. Solid carbide construction also provides high rigidity compared with conventional HSS tools.

Ball nose end mills are commonly used for:

3D contour machining
Curved surface finishing
Mold and die machining
Cavity profiling
Precision component machining
Z-level finishing
Complex profile milling

Manufacturers offer 4-flute solid carbide ball nose tools specifically for 3D profiling, die and mold machining, and finishing applications.

Key Features of SC Ball Nose End Mill 55HRC

1. Solid Carbide Construction

Solid carbide provides the rigidity and wear resistance needed for hardened-steel machining.

Fine-grain or ultra-fine-grain carbide substrates are commonly used in 55 HRC ball nose tools. Some current products specify ultra-fine carbide substrates together with hardened-steel coatings for this application.

This helps the cutter maintain edge stability during demanding finishing operations.

2. Ball Nose Geometry

The spherical cutting end is the main feature of the tool.

It allows the cutter to follow:

Convex surfaces
Concave surfaces
Ramps
Curved transitions
Mold cavities
Complex 3D contours

This geometry makes ball nose cutters particularly useful where a conventional flat end mill cannot efficiently follow the required profile.

3. Designed for Up to 55 HRC

Dedicated hardened-steel ball nose tools are available for materials up to approximately 55 HRC. Some manufacturers specify 55 HRC 4-flute ball nose ranges for alloy steel, pre-hardened steel, tool steel, and similar materials.

Always verify the manufacturer’s maximum hardness rating rather than assuming every carbide ball nose cutter can machine 55 HRC.

4. Wear-Resistant Coating

Coatings such as TiAlN, AlTiN, TiSiN, and related high-performance coatings are used on hardened-steel end mills to improve resistance to heat and wear.

For example, current 55 HRC ball nose products are available with TiSiN coatings, while other hardened-steel designs use AlTiN-based coatings.

The coating should be selected according to the workpiece, cutting conditions, and manufacturer’s recommendations.

5. Multiple Flute Options

SC ball nose end mills are available in different flute configurations.

2-Flute: More chip space and useful for deeper features or applications where chip evacuation is important.

4-Flute: More cutting edges, supporting higher productivity and fine finishing when the setup is sufficiently rigid.

Some 55 HRC product ranges specifically use 4-flute designs for higher feed rates and finishing performance.

Benefits of SC Ball Nose End Mills for 55 HRC

Better 3D Surface Machining

The rounded tip follows complex toolpaths and changing surface angles, making it suitable for precision 3D profiling.

Improved Surface Finish

A properly selected ball nose cutter can produce smooth transitions across curved surfaces. Final surface quality also depends heavily on step-over, feed, runout, tool rigidity, and toolpath strategy.

High Wear Resistance

Solid carbide combined with a suitable coating helps the cutting edge resist wear during hardened-steel machining.

Good Dimensional Stability

High rigidity and controlled tool geometry can help maintain profile accuracy, particularly during finishing operations.

Suitable for Mold and Die Work

Ball nose end mills are widely used for mold cavities, stamping dies, forging dies, and complex hardened components.

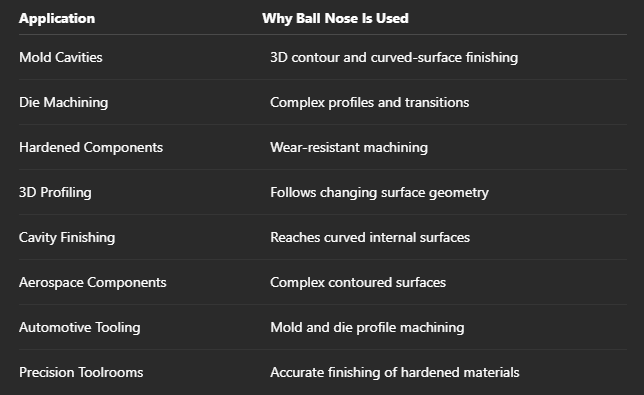

Common Applications

How to Select the Right SC Ball Nose End Mill

Cutter Diameter

A larger diameter generally provides greater rigidity, while a smaller diameter offers better access to tight features.

Choose the largest diameter that can safely reach the required geometry.

Ball Radius

The ball radius affects the cutter’s ability to machine different surface features. Smaller radii can reach tighter details, while larger radii generally provide greater rigidity and surface coverage.

Flute Count

Choose the flute count according to the operation, material, chip evacuation requirements, and machine rigidity.

Tool Length

Use the shortest practical tool length. Excessive overhang can increase deflection, chatter, vibration, and edge damage.

For deep cavities, use a purpose-designed long-neck or long-reach ball nose cutter.

Coating

For 55 HRC steel, select a coating specifically recommended for hardened materials and the intended cutting conditions.

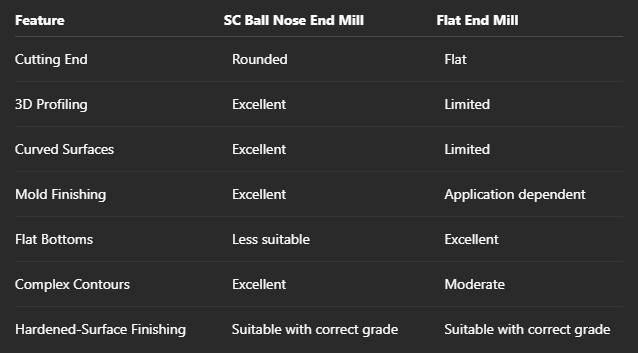

SC Ball Nose vs Flat End Mill

The choice depends on the component geometry. Ball nose tools are primarily advantageous when curved and 3D surfaces are involved.

Tips for Better Tool Life

To get consistent performance from an SC Ball Nose End Mill 55 HRC:

Use a rigid toolholder.
Minimize tool overhang.
Check spindle and tool runout.
Use manufacturer-recommended cutting parameters.
Avoid excessive radial engagement.
Select the correct step-over for the required finish.
Monitor coating and cutting-edge wear.
Use appropriate coolant or dry-machining conditions recommended for the tool.
Reduce vibration before increasing cutting parameters.

A premium cutter still needs a stable setup. Hardened steel has very little patience for vibration.

Why Choose MakeYouEasy?

At MakeYouEasy, you can explore CNC cutting tools and machining accessories for milling, turning, boring, threading, and other industrial applications.

Before purchasing an SC Ball Nose End Mill 55HRC, verify the cutter diameter, ball radius, flute count, carbide grade, coating, cutting length, overall length, and manufacturer’s recommended cutting conditions.

Conclusion

An SC Ball Nose End Mill 55HRC is designed for demanding CNC machining of hardened steel where curved surfaces, 3D profiles, mold cavities, and precision finishing are required.

Its combination of solid carbide construction, ball nose geometry, suitable coating, and hardened-steel capability can provide good wear resistance, surface quality, and dimensional stability.

For the best results, select the correct diameter, ball radius, flute count, coating, tool length, and cutting parameters for the actual application. Maintaining low runout and a rigid setup is equally important for achieving reliable performance.

Frequently Asked Questions

1. What is an SC Ball Nose End Mill?
It is a solid carbide milling cutter with a rounded ball-shaped cutting end for 3D and curved-surface machining.

2. Can an SC Ball Nose End Mill machine be 55 HRC steel?
Yes, when the specific tool is designed and rated for hardened steel up to 55 HRC.

3. What coating is suitable for 55 HRC steel?
TiAlN, AlTiN, TiSiN, and similar high-performance coatings are commonly used for hardened-steel machining.

4. Where are 55 HRC ball nose end mills commonly used?
They are commonly used for mold and die machining, 3D profiling, cavity finishing, and hardened-component machining.

5. How can I improve ball nose end mill tool life?
Use a rigid setup, minimize overhang and runout, and follow the manufacturer’s recommended cutting parameters.
