How to Reduce Tool Runout with an ER16 Zero Adjustment Nut

Author : Surya makeyoueasy | Published On : 17 Sep 2026

Introduction

Tool runout can reduce machining accuracy even when a high-quality cutter and CNC machine are being used. Small concentricity errors can cause one cutting edge to remove more material than the others, leading to uneven wear, vibration, dimensional variation, and poor surface finish. An ER16 zero adjustment nut, also called a runout compensation nut, provides a way to make fine radial corrections after the tool is clamped. When properly adjusted with a dial indicator, this type of nut can significantly reduce Total Indicator Runout (TIR) and improve the performance of drills, reamers, end mills, and other round-shank cutting tools.

What Is Tool Runout?

Tool runout occurs when the cutting tool does not rotate perfectly around the spindle centerline.

Instead of every cutting edge following the same circular path, one side of the tool rotates farther away from the true center.

Runout can originate from several areas:

Machine spindle
Toolholder taper
ER collet chuck
ER16 collet
Clamping nut
Cutting-tool shank
Dirt or chips between mating surfaces
Incorrect collet installation
Worn or damaged components

The runout of the complete assembly is normally checked as Total Indicator Runout or TIR.

What Is an ER16 Zero Adjustment Nut?

A zero adjustment nut is a specialized replacement for a conventional ER collet nut.

Instead of relying only on the natural concentricity of the holder, collet, nut, and cutting tool, an adjustable nut includes fine radial adjustment screws that allow the operator to compensate for measured runout.

Commercial systems such as the easyZERO design use six perimeter adjustment screws and are available for ER16 through ER40 collet systems. The manufacturer describes the system as a replacement nut intended to correct tool misalignment and runout.

For an ER16 version, always verify that the nut is designed for the exact ER16 holder and collet system being used.

Why Reduce Tool Runout?

Low runout allows the cutting edges to share the machining load more evenly.

Excessive runout can cause:

Uneven flute loading
Premature edge wear
Chipping
Oversized holes
Poor roundness
Increased vibration
Poor surface finish
Reduced tool life

Runout-compensation systems are specifically promoted for distributing chip load more evenly across cutting edges, which can contribute to more consistent wear and better machining results.

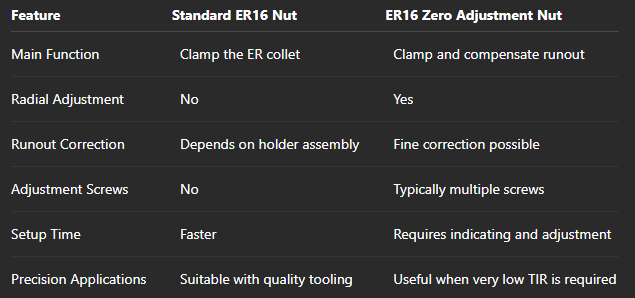

Standard ER16 Nut vs Zero Adjustment Nut

A zero adjustment nut should not be used as an excuse to ignore a damaged holder or poor-quality collet. It is a fine-correction device, not a magical repair kit wearing an ER16 costume.

1. Clean the Entire Toolholding System

Before attempting any adjustment, clean:

Spindle taper
Toolholder taper
ER16 holder
Collet taper
Collet slots
Adjustment nut
Cutting-tool shank

Even a small chip trapped between the collet and holder can shift the tool away from the spindle centerline.

The easyZERO setup instructions specifically begin by requiring all components to be thoroughly cleaned before adjustment.

2. Install the ER16 Collet Correctly

The collet should normally be snapped into the retaining feature of the nut before the nut is threaded onto the holder.

Incorrect assembly can prevent the collet from seating correctly and create unnecessary runout.

Once the collet is installed:

Thread the nut loosely onto the holder.
Insert the cutting-tool shank.
Position the tool at the required projection.
Tighten the ER16 assembly correctly.

For adjustable-nut systems, follow the manufacturer’s exact installation procedure.

3. Minimize Tool Projection

Runout becomes more noticeable as the measurement point moves farther from the holder.

A long tool projection also increases:

Deflection
Vibration
Bending load
Chatter risk

Clamp as much of the usable tool shank as practical while maintaining the required machining clearance.

This is especially important for:

Small end mills
Reamers
Long drills
Thread mills
Precision finishing tools

4. Measure the Initial Runout

After installing the tool, place the complete assembly in the machine spindle.

Use a suitable dial test indicator or high-resolution dial indicator.

The manufacturer of one runout-adjustable nut recommends using an indicator capable of 0.001 mm or 0.0001 inch resolution.

Position the indicator against:

A clean cylindrical tool shank, or
A dedicated concentricity band if the tool provides one

Rotate the spindle or holder manually through 360° and observe the maximum and minimum indicator readings.

The difference represents the measured TIR.

5. Find the Highest Runout Point

Slowly rotate the tool assembly while watching the indicator.

Mark or remember the point where the indicator reaches its highest reading.

This is the direction in which the tool is farthest from the desired rotational center.

On a set-screw-style zero adjustment nut, this reading identifies where radial correction should begin.

6. Adjust the ER16 Zero Nut

The exact procedure depends on the product design, so always follow its manufacturer’s instructions.

For the easyZERO-style system, the procedure uses multiple perimeter screws around the nut. After initially snugging the screws evenly, the tool is indicated and the screw nearest the highest measured point is tightened gradually. The opposite screw may be relieved slightly if additional movement is needed.

The basic process is:

Identify the highest indicator reading.
Make a very small adjustment.
Rotate the tool through 360° again.
Recheck TIR.
Find the new high point.
Make another fine correction.
Repeat until the required runout is achieved.

Small adjustments are important. The goal is controlled correction, not brute-force alignment.

7. Tighten the Remaining Adjustment Screws

Once acceptable TIR has been achieved, lightly secure the remaining adjustment screws according to the manufacturer’s procedure.

Then measure runout again.

This final check matters because tightening another screw can slightly change the tool position.

The easyZERO procedure similarly recommends securing the remaining perimeter screws and then verifying that the adjustment has not moved.

How Much Runout Can Be Corrected?

Correction capability depends on the specific nut.

For example, the current easyZERO product information states that its system can compensate for up to approximately 0.050 mm of runout, while its setup guide describes adjusting the assembly to below 0.005 mm TIR under its recommended procedure.

These figures should not automatically be applied to every ER16 zero adjustment nut.

Check the specifications of the exact product being used.

ER16 Zero Adjustment Nut Specifications

One documented ER16 runout-compensation system lists:

These specifications are specific to the referenced easyZERO ER16 design and should not be assumed for other manufacturers.

Applications That Benefit from Low Runout

Reaming

Reamers benefit greatly from concentric rotation because excessive runout can affect hole diameter, roundness, and surface finish.

Small-Diameter End Milling

Small cutters are sensitive to uneven flute loading. Lower runout distributes cutting forces more evenly.

Drilling

Reduced runout can help improve hole position, tool stability, and cutting-edge loading.

Thread Milling

Low runout helps maintain more consistent cutter engagement during helical interpolation.

Precision Finishing

Applications requiring tight dimensional tolerance and fine surface finish benefit from better tool concentricity.

How Lower Runout Improves Tool Life

Consider a multi-flute end mill.

If the tool has excessive runout, one flute may contact the workpiece more heavily than the others. Instead of sharing the programmed chip load equally, that flute becomes the unwilling employee doing everyone else’s shift.

It can wear or chip first.

Reducing runout helps distribute the cutting load more evenly between the flutes, supporting more consistent cutting-edge wear. This is one of the main benefits identified by manufacturers of runout-compensation nuts.

Common Runout Problems

Runout Remains High After Adjustment

Check the collet, holder, spindle taper, tool shank, and nut for contamination or damage.

Runout Changes After Tightening

The adjustment screws may have shifted the tool position. Repeat the indicator check after final tightening.

Good Runout Near the Holder but Poor Runout at the Tool Tip

The cutting tool may be bent, or the assembly may have angular misalignment.

Runout Returns After Tool Change

A zero adjustment is normally made for the complete installed tool assembly. Changing the cutter, collet, or holder can change the resulting TIR.

Tool Vibrates Even with Low Runout

Runout is only one factor. Check tool projection, workholding, spindle condition, tool geometry, speed, feed, and machine rigidity.

ER16 Runout Reduction Checklist

Before machining, verify:

Spindle taper is clean
Tool holder is clean
ER16 collet is undamaged
Collet is installed correctly
Tool shank is clean
Tool projection is minimized
Nut is tightened correctly
TIR is measured with a suitable indicator
Adjustment screws are corrected gradually
Final runout is checked after locking
Cutting parameters suit the tool and material

For precision machining, always measure the complete assembly, not just one component individually.
