ETJNR/L 2525M16 ECHAIN Equivalent Turning Holder: Complete Guide to Specifications & Applications

Author : Surya makeyoueasy | Published On : 09 Oct 2026

Introduction

The ETJNR/L-2525M16 is an external CNC turning tool holder designed for compatible TN1604-series inserts. With a 25 × 25 mm shank and 93° tool geometry, it is suitable for common external turning operations such as longitudinal turning, facing, and profiling. Understanding its dimensions, insert compatibility, right- and left-hand versions, and clamping system helps machinists select the correct holder for their CNC lathe setup.

What Is the ETJNR/L-2525M16 Turning Holder?

The ETJN series is a 93° external turning tool-holder family available in right-hand and left-hand configurations. The ECHAIN specification lists the ETJNR/L-2525M16 with a 25 × 25 mm shank and compatibility with TN1604 inserts.

The holder uses a clamping arrangement designed to secure the insert and support stable machining. ECHAIN describes its E-type holder design as providing secure insert clamping and accurate indexing.

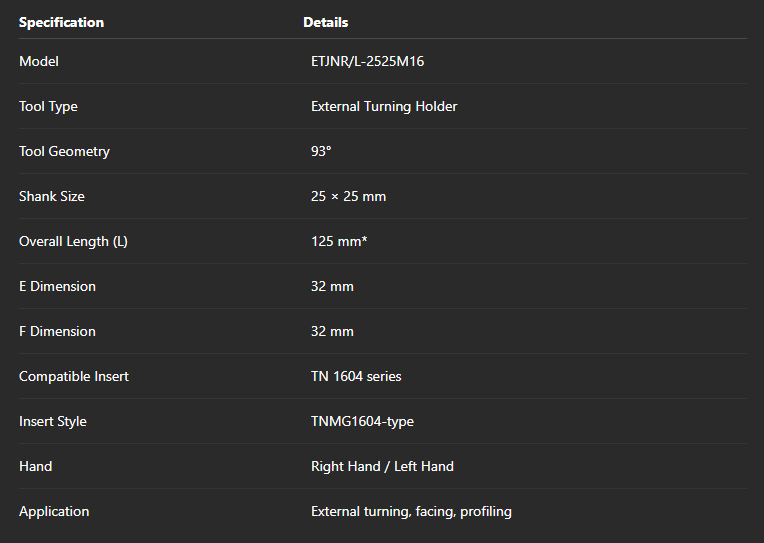

ETJNR/L-2525M16 Specifications



*Dimensions should be confirmed against the exact supplier drawing before ordering. ECHAIN’s current product page and catalog list L as 125 mm for ETJNR/L-2525M16.

Understanding the ETJNR/L Code

The model designation provides useful information about the holder:

  • ETJN: External turning holder series

  • R/L: Available in right-hand and left-hand versions

  • 25: 25 mm shank height

  • 25: 25 mm shank width

  • M: Holder size/length classification within the series

  • 16: Designed for the TN1604 insert family

The exact designation system can vary between manufacturers, so the complete product drawing should be used when matching an equivalent holder.

93° Turning Geometry

The ETJN holder is designed around a 93° approach geometry. This makes it useful for external turning where accessibility near shoulders and component features is important.

The geometry can support:

  • Longitudinal external turning

  • Facing operations

  • Shoulder machining

  • Profile turning

  • General-purpose CNC lathe work

The actual clearance and cutting performance depend on the holder orientation, insert geometry, workpiece shape, and selected cutting conditions.

Insert Compatibility

The ETJNR/L-2525M16 is specified for TN 1604 inserts. ECHAIN lists TN1604 together with the SMT-322 shim and associated clamping components for this holder.

A compatible TNMG1604 insert can therefore be considered when the complete insert, shim, clamp, screw, and holder combination matches the manufacturer’s specification.

Before installation, check:

  • Insert designation

  • Insert thickness

  • Shim compatibility

  • Clamp and screw arrangement

  • Cutting-edge orientation

  • Holder hand

Never assume that every TNMG1604 insert will automatically fit every TN-style holder.

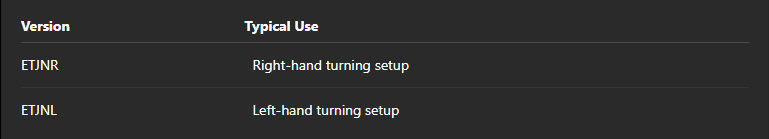

Right-Hand vs Left-Hand Holder

The R/L designation indicates that the holder is available in right-hand and left-hand versions.



The correct version depends on the machine setup, spindle rotation, cutting direction, and tool position.

Choosing the wrong hand can result in incorrect cutting direction or an unsuitable approach to the workpiece.

Main Applications

1. External Turning

The primary application is machining the outside diameter of shafts, bars, and other cylindrical components.

2. Facing

The holder can be used for facing operations when the insert and tool orientation provide adequate clearance.

3. Shoulder Turning

The 93° geometry can provide useful access when machining near shoulders and component steps.

4. Profile Machining

Compatible TN inserts can be used for general profile turning within the geometric limitations of the holder and insert.

5. Production CNC Turning

The rigid 25 × 25 mm shank makes this size suitable for compatible CNC lathe setups where the machine turret or tool post accepts the corresponding shank dimensions.

Why Choose an ECHAIN Equivalent Holder?

An equivalent holder can be useful when replacing an existing ETJNR/L-2525M16-style tool holder, provided the critical dimensions and clamping components match.

Before purchasing an equivalent, compare:

  • Shank dimensions

  • Overall holder length

  • Insert designation

  • Insert seating position

  • Shim dimensions

  • Clamp arrangement

  • Screw specifications

  • Right/left-hand configuration

  • Approach geometry

Dimensional compatibility is more important than simply matching the model number.

Common Selection Mistakes

  • Choosing a 20 × 20 mm holder when the machine requires 25 × 25 mm

  • Selecting the wrong right- or left-hand version

  • Using an incompatible insert or shim

  • Ignoring the holder’s overall length

  • Assuming all TNMG1604 inserts have identical clamping requirements

  • Replacing a holder without checking the machine turret dimensions

  • Using excessive tool overhang during machining

Tips for Better Performance

  • Keep the holder securely clamped in the machine turret.

  • Minimise unnecessary tool projection.

  • Ensure the insert is correctly seated against the shim and holder.

  • Check insert and clamp condition before machining.

  • Use cutting parameters recommended for the specific insert grade.

  • Select the correct holder hand for the machining direction.

  • Inspect the holder for wear or damage after heavy or interrupted machining.

A rigid setup and correctly matched insert-holder combination are essential for controlling vibration and maintaining consistent machining performance.

Why Choose MakeYouEasy?

MakeYouEasy provides CNC turning holders, carbide inserts, milling tools, tool holders, and machining accessories for manufacturing applications.

For an ETJNR/L-2525M16 equivalent, checking shank size, insert compatibility, holder geometry, hand, and clamping arrangement helps ensure the replacement works correctly with the intended CNC setup.

Conclusion

The ETJNR/L-2525M16 is a 25 × 25 mm external turning holder from the ETJN 93° series, designed for TN1604-series inserts and available in right- and left-hand configurations. Its robust shank and external turning geometry make it suitable for common CNC turning, facing, shoulder, and profiling operations.

When selecting an ECHAIN equivalent, do not compare the model number alone. Verify the 25 × 25 mm shank, 93° geometry, insert compatibility, overall length, clamping components, and R/L configuration to ensure proper fit and reliable machining performance.

Frequently Asked Questions

1. What insert is used with ETJNR/L-2525M16?
The holder is specified for TN1604-series inserts, including compatible TNMG1604 configurations.

2. What is the shank size of ETJNR/L-2525M16?
The standard shank size is 25 × 25 mm.

3. What does ETJNR/L mean?
It identifies the ETJN external turning holder series with right-hand and left-hand versions.

4. What is the angle of the ETJN holder?
The ETJN series is specified with a 93° external turning geometry.

5. What should I check when buying an equivalent holder?
Verify shank dimensions, insert compatibility, overall length, clamping system, geometry, and right- or left-hand configuration.
