Introduction

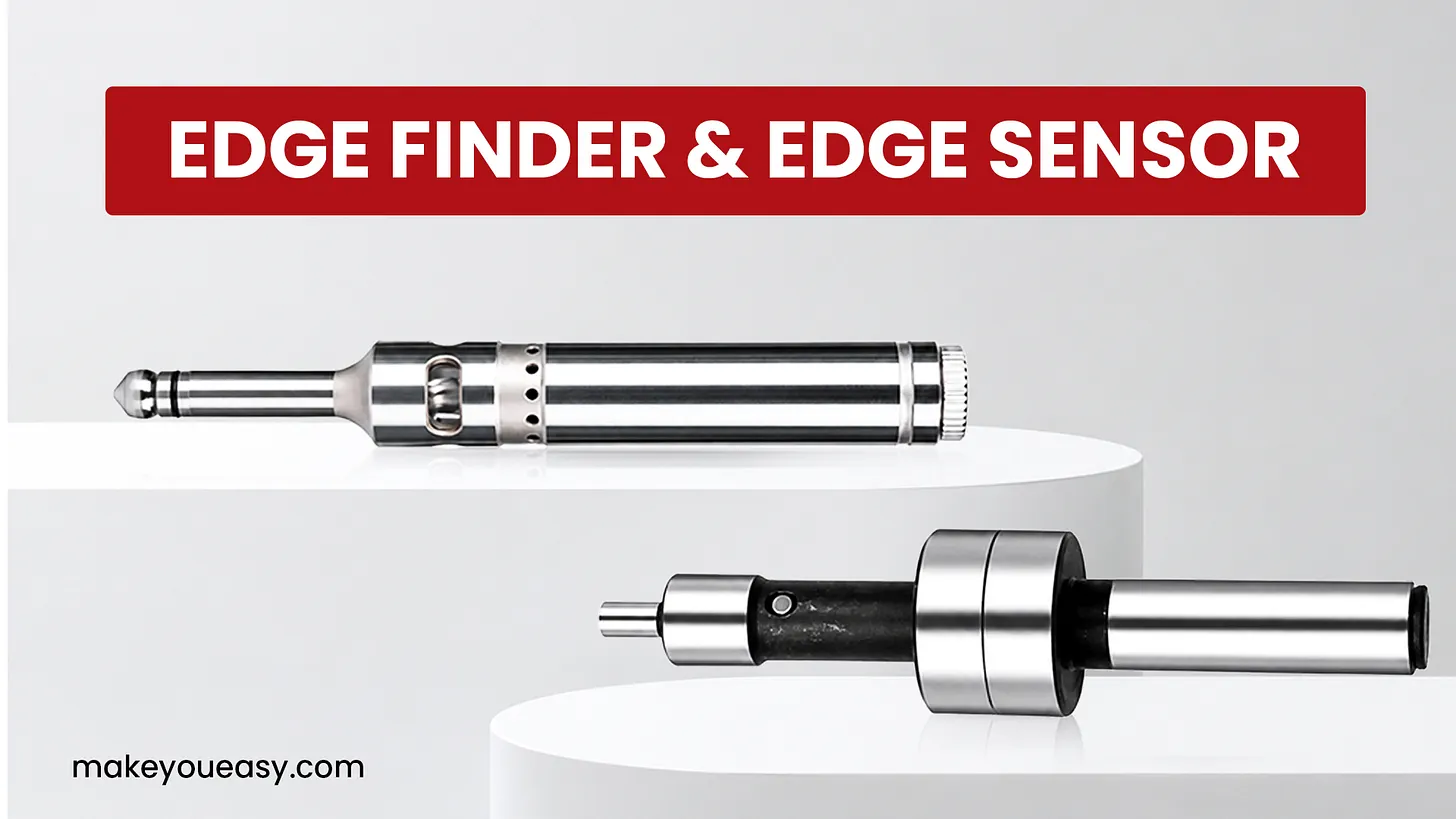

Accurate workpiece positioning is the foundation of precision CNC machining. Edge Finders and Electronic Edge Sensors are essential measuring tools that help machinists quickly locate the exact edge, center, or reference point of a workpiece before machining begins. By ensuring accurate tool alignment, these precision instruments reduce setup time, improve machining accuracy, and minimize costly errors.

Whether you’re operating a Vertical Machining Center (VMC), CNC Milling Machine, or Manual Milling Machine, Edge Finders and Edge Sensors provide reliable and repeatable positioning for high-quality machining results.

Why Use an Edge Finder & Edge Sensor?

Proper workpiece alignment is critical for maintaining dimensional accuracy and improving machining efficiency. These tools simplify the setup process while ensuring exceptional precision.

Key Features

High-precision edge detection
Quick and accurate workpiece alignment
Reduces setup time
Improves machining accuracy
Suitable for CNC and manual milling machines
Durable hardened steel construction
Easy to use for beginners and professionals
Repeatable measurement results
Long service life
Compact and lightweight design

Applications

Edge Finders and Edge Sensors are widely used for:

CNC Milling Machines
Vertical Machining Centers (VMC)
Horizontal Machining Centers (HMC)
Manual Milling Machines
Tool Rooms
Precision Engineering
Mold & Die Manufacturing
Fixture Setup
Workpiece Center Finding
Machine Calibration

Benefits

Using an Edge Finder or Edge Sensor provides several machining advantages:

Faster machine setup
Improved dimensional accuracy
Reduced machining errors
Better repeatability
Increased productivity
Lower setup costs
Improved workpiece positioning
Enhanced machining consistency
Longer tool life
Higher production efficiency

Types Available

Mechanical Edge Finder

Ideal for manual and CNC milling machines
Simple and reliable operation
No batteries required
Cost-effective precision tool
