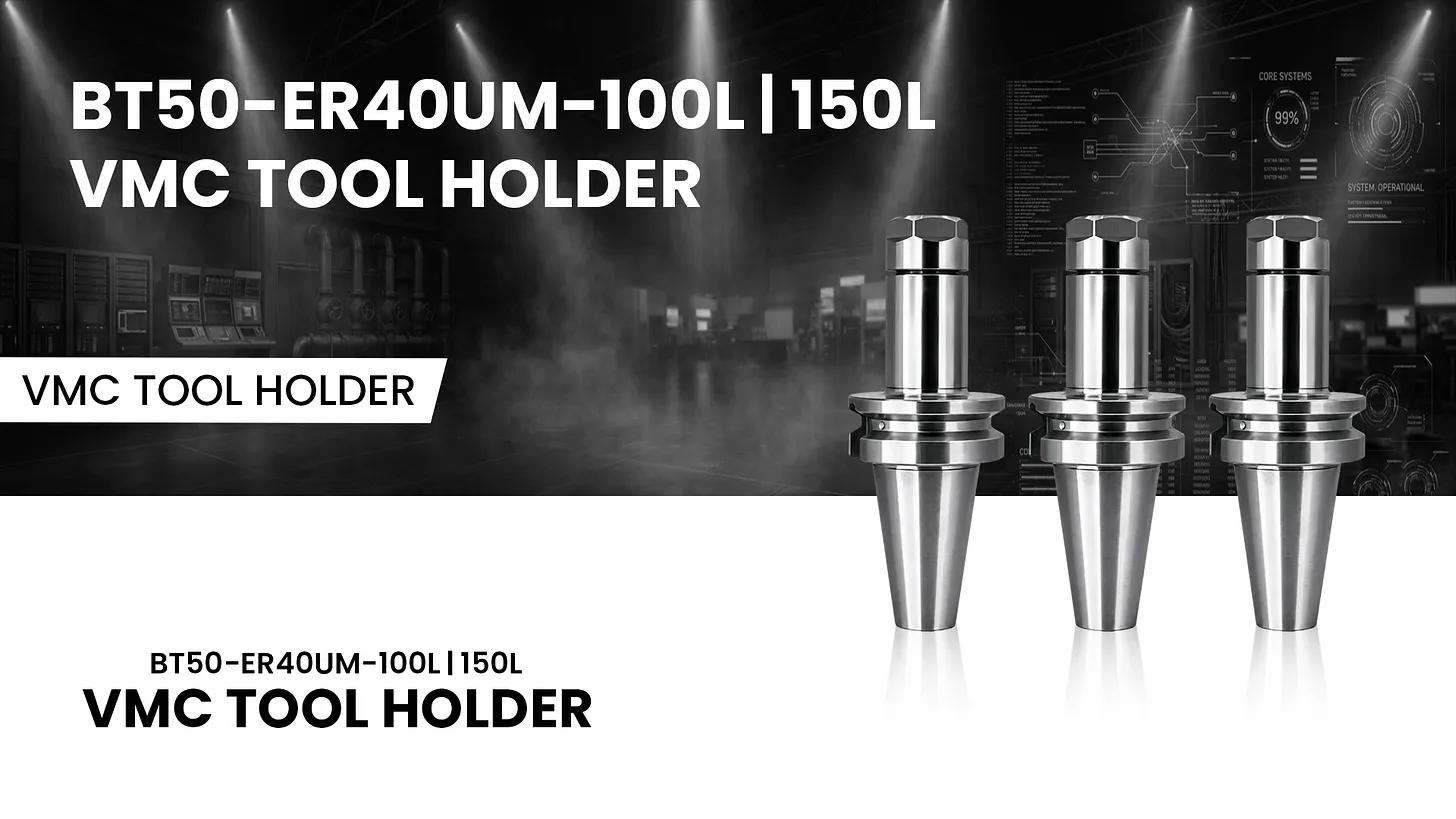

BT50-ER40UM-100L/150L VMC Tool Holder

Author : Surya makeyoueasy | Published On : 10 Jul 2026

Introduction

In CNC machining, precision starts with a reliable tool holder. The BT50-ER40UM-100L/150L VMC Tool Holder is designed to deliver superior clamping force, excellent concentricity, and exceptional machining stability. Built for heavy-duty milling, drilling, reaming, and tapping operations, this tool holder ensures optimal performance in demanding industrial environments.

Available in 100 mm and 150 mm projection lengths, the BT50-ER40UM holder offers greater flexibility for machining applications requiring extended reach without compromising rigidity. Its ER40 Ultra Mini (UM) collet system securely grips a wide range of cutting tools, making it an essential accessory for CNC Vertical Machining Centers (VMCs).

Why Choose the BT50-ER40UM-100L/150L Tool Holder?

The BT50-ER40UM combines precision engineering with robust construction to improve machining efficiency, reduce tool vibration, and extend tool life.

Key Features

High-precision BT50 taper for accurate positioning
Compatible with ER40UM collets
Available in 100 mm and 150 mm projection lengths
Strong clamping force for secure tool holding
Excellent runout accuracy for precision machining
Precision-balanced for smooth high-speed operation
Hardened alloy steel construction
Wear and corrosion-resistant surface finish
Easy tool installation and replacement
Long service life with minimal maintenance

Applications

The BT50-ER40UM Tool Holder is suitable for a wide range of CNC machining operations, including:

End Milling
Drilling
Reaming
Tapping
Slot Milling
Profile Milling
Precision Finishing
Heavy-Duty CNC Machining
General Engineering
Tool Room Operations

Benefits

Using the BT50-ER40UM-100L/150L VMC Tool Holder offers several advantages:

Improved machining precision
Reduced vibration and chatter
Better surface finish
Increased tool life
Higher machining productivity
Excellent spindle protection
Reliable clamping performance
Consistent machining accuracy
Lower operating costs
Enhanced production efficiency

Technical Specifications

SpecificationDetailsModelBT50-ER40UM-100L / 150LTaper TypeBT50Collet TypeER40UMProjection Length100 mm / 150 mmMachine CompatibilityCNC VMC MachinesApplicationMilling, Drilling, Reaming, TappingMaterialHardened Alloy SteelBalancingHigh Precision Balanced

Industries Served

The BT50-ER40UM Tool Holder is widely used in:

Automotive Industry
Aerospace Manufacturing
Precision Engineering
Mold & Die Industry
Heavy Engineering
CNC Job Work
Machine Tool Manufacturing
Industrial Production
General Fabrication

Maintenance Tips

To ensure maximum tool holder performance:

Clean the BT taper before mounting.
Use high-quality ER40UM collets.
Tighten the collet nut to the recommended torque.
Inspect the holder regularly for wear.
Keep the tool holder free from coolant residue and chips.
Store in a protective holder when not in use.

Why Buy from Us?

We provide premium CNC tooling solutions trusted by professionals across India.

What You Get

Premium quality CNC tool holders
Competitive pricing
Fast Pan-India delivery
Precision-tested products
Long-lasting durability
Reliable customer support
Trusted industrial performance

Conclusion

The BT50-ER40UM-100L/150L VMC Tool Holder is engineered to deliver maximum clamping strength, exceptional accuracy, and long-term reliability. Whether you’re performing precision drilling, end milling, or heavy-duty machining, this tool holder provides the stability and performance needed to improve productivity and achieve superior machining results.

Frequently Asked Questions (FAQs)

1. What is the BT50-ER40UM-100L/150L Tool Holder used for?

It is designed to hold ER40UM collets for milling, drilling, reaming, boring, and tapping operations on CNC Vertical Machining Centers (VMCs).

2. Which machines are compatible with this tool holder?

It is compatible with BT50 spindle CNC VMC machines that support the BT50 taper standard.

3. What is the difference between the 100L and 150L models?

The difference is the projection length:

100L: Better rigidity for general machining.
150L: Extended reach for machining deep cavities or hard-to-access areas.

4. What size collets does this holder use?

The tool holder is designed for ER40UM collets, allowing it to clamp a wide range of tool shank diameters.

5. Can this tool holder be used for high-speed machining?

Yes. Its precision-balanced construction reduces vibration and supports high-speed CNC machining while maintaining excellent accuracy.
