Introduction

A BT40 locking device is a practical CNC tooling accessory used to securely hold a BT40 tool holder during cutting-tool installation, removal, and maintenance. It provides a stable setup for tightening collet nuts, installing pull studs, and assembling different tooling components. For CNC workshops and VMC operators, using a dedicated BT40 tool holder locking fixture can improve setup safety, reduce handling time, and protect precision tool holders from improper clamping.

What Is a BT40 Locking Device?

A BT40 locking device, also known as a BT40 tool holder tightening fixture, is designed to hold a BT40 taper tool holder securely outside the CNC machine.

Instead of manually holding the tool holder while tightening or loosening components, the locking device provides a stable working position.

It is commonly used while working with:

ER collet chucks
Collet nuts
Pull studs
End mill holders
Face mill holders
Side lock holders
Other BT40 tooling assemblies

This makes it a useful accessory for CNC tool rooms, VMC workshops, and production environments.

Key Features of a BT40 Locking Device

1. Secure BT40 Holding

The primary feature of a BT40 locking device is its ability to securely support the tool holder during assembly.

Stable positioning gives the operator better control while tightening or removing tooling components.

2. BT40-Compatible Design

The fixture is designed around the geometry of BT40 taper tool holders, providing proper support during setup.

Always verify compatibility with the specific holder style before use.

3. Rigid Construction

A quality locking device should have a strong and rigid body capable of handling the forces generated during tool assembly.

Good rigidity helps prevent unnecessary movement while tightening.

4. Easy Tool Access

The fixture positions the tool holder so operators can conveniently access collet nuts, cutting tools, pull studs, and other components.

5. Workshop-Friendly Design

Many locking fixtures can be mounted securely to a workbench or dedicated tool setup station, creating an organized location for BT40 tool preparation.

What Is a BT40 Locking Device Used For?

A BT40 locking device supports several common CNC tool setup tasks.

Tightening ER Collet Nuts

When assembling a BT40 ER collet chuck, the locking device holds the holder securely while the operator tightens the collet nut.

Installing Cutting Tools

End mills, drills, reamers, and other cutting tools can be installed more conveniently when the holder remains stable.

Installing or Removing Pull Studs

The fixture can provide a controlled setup when installing or removing compatible pull studs from BT40 holders.

Tool Holder Maintenance

BT40 holders can be inspected, cleaned, assembled, and maintained more conveniently outside the CNC machine.

Tool Change Preparation

In production environments, multiple tool holders can be prepared before they are loaded into the machine’s automatic tool changer.

Benefits of Using a BT40 Locking Device

1. Safer Tool Setup

Trying to manually hold a BT40 holder while applying tightening force can result in slipping or uncontrolled movement.

A locking device provides a stable platform, helping operators perform setup tasks with greater control.

2. Faster Tool Preparation

A dedicated fixture simplifies repeated tool assembly and removal.

This can reduce preparation time, particularly in workshops where multiple BT40 tools are changed regularly.

3. Consistent Tightening

Stable tool-holder positioning makes it easier to use the appropriate wrench or torque wrench correctly.

Following the component manufacturer’s specified torque helps achieve consistent assembly.

4. Protects Tool Holders

Precision BT40 taper surfaces should not be gripped carelessly in unsuitable vices or improvised clamps.

A properly designed locking fixture supports the holder without unnecessarily damaging critical surfaces.

5. Better Workshop Efficiency

A dedicated BT40 setup station helps organize the tool preparation process and keeps assembly work away from the CNC machine spindle.

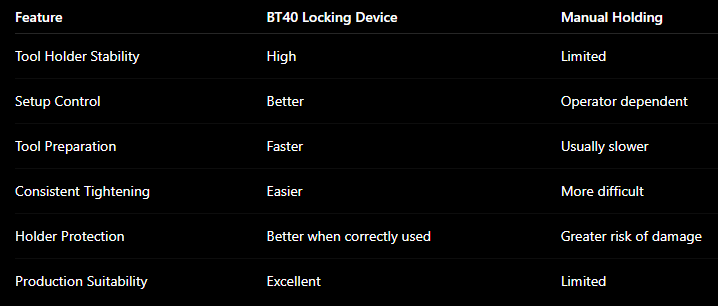

BT40 Locking Device vs Manual Tool Setup

For workshops handling BT40 tooling frequently, a dedicated locking device provides a more controlled setup method.

Where Are BT40 Locking Devices Used?

BT40 locking devices are commonly used in:

CNC machine shops
VMC machining centers
Tool rooms
Automotive manufacturing
Mold and die workshops
Precision engineering
CNC production facilities
General manufacturing
Tool presetting stations
CNC training centers

They are particularly useful in facilities where tool holders are frequently assembled and changed.

How to Use a BT40 Locking Device

The exact procedure depends on the fixture design, but a typical setup includes:

Securely install the locking device on a suitable workbench.
Place the BT40 tool holder into the fixture.
Ensure the holder is properly seated and locked.
Install or remove the required cutting tool or accessory.
Tighten components using the correct wrench and recommended torque.
Release and remove the tool holder.
Inspect the complete assembly before loading it into the CNC machine.

Always follow the tool holder and accessory manufacturer’s instructions.

How to Choose the Right BT40 Locking Device

Check Compatibility

Make sure the fixture is specifically designed for the BT40 tooling you use.

Choose Rigid Construction

A strong fixture provides better stability during tightening and loosening operations.

Check Mounting

For regular workshop use, choose a device that can be securely mounted to a stable workbench.

Consider Tool Accessibility

The design should provide convenient access to the holder and tooling components.

Protect Precision Surfaces

Choose a locking fixture designed to support the holder without damaging the BT40 taper or other critical surfaces.

Tips for Safe and Effective Use

For reliable BT40 tool preparation:

Keep the fixture and tool holder clean.
Securely mount the locking device.
Confirm the holder is fully seated before tightening.
Use the correct wrench.
Follow recommended torque specifications.
Avoid excessive tightening.
Inspect holders and accessories for damage.
Never use a damaged locking fixture.
Check the complete tool assembly before machining.

Common Mistakes to Avoid

Using the Wrong Locking Device

Do not assume a BT30, BT40, and BT50 fixture can be used interchangeably unless the product is specifically designed for multiple taper sizes.

Improper Workbench Mounting

An unstable fixture can move while force is being applied.

Over-Tightening

Excessive torque may damage collets, nuts, threads, or other tool holder components.

Clamping Precision Surfaces Incorrectly

Avoid using unsuitable workshop vices directly on precision BT40 taper surfaces.

Ignoring Tool Condition

Always inspect the tool holder, cutting tool, collet, nut, and pull stud before assembly.
