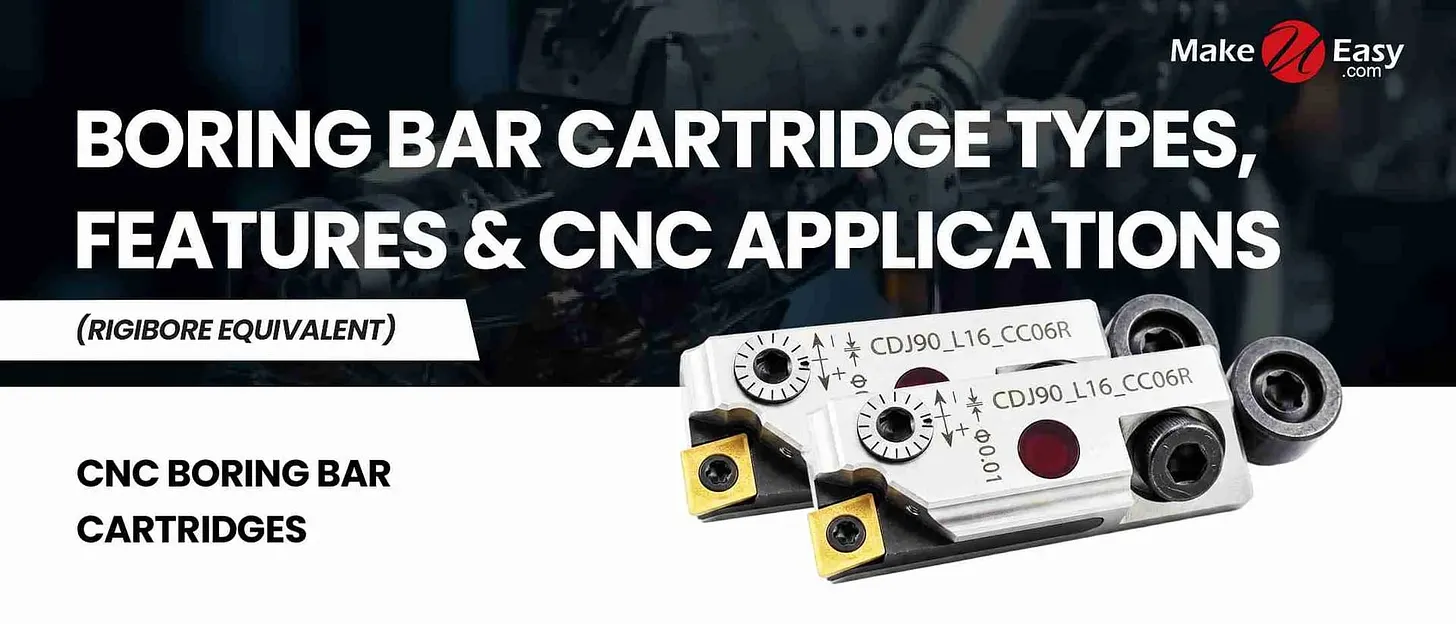

Boring Bar Cartridge (Rigibore Equivalent) – Types, Features & CNC Applications
Author : Surya makeyoueasy | Published On : 07 Jul 2026
Introduction
In precision CNC machining, achieving accurate internal diameters is critical for part quality and assembly fitment. A Boring Bar Cartridge (Rigibore Equivalent) is an advanced fine boring solution designed to deliver high accuracy, micro-adjustment capability, and excellent repeatability.
These cartridges are widely used in VMC machines, CNC machining centers, and precision tool rooms where tight tolerances are required. Compared to conventional boring tools, adjustable boring cartridges provide superior control over diameter correction, reducing rework and improving productivity.
At Makeyoueasy, we provide high-performance CNC boring solutions designed for accuracy, durability, and industrial reliability.
What Is a Boring Bar Cartridge?
A Boring Bar Cartridge is a precision-adjustable tool system used to fine-tune internal bore diameters during machining.
Instead of replacing the tool or regrinding it, machinists can micro-adjust the cutting edge position, allowing extremely precise bore corrections.
This makes it ideal for:
-
Finish boring
-
Fine boring
-
Precision hole sizing
-
High-tolerance machining
Rigibore-style systems are known for their adjustable precision mechanism, which helps achieve micron-level accuracy in CNC operations.
Types of Boring Bar Cartridges
🔹 1. Fine Boring Cartridge
Used for high-precision finishing operations where tight tolerances are required.
✔ Applications:
-
Automotive components
-
Bearing housings
-
Hydraulic parts
🔹 2. Adjustable Boring Cartridge
Allows manual micro-adjustment of cutting diameter for accurate bore correction.
✔ Benefits:
-
Easy diameter setting
-
Reduced setup time
-
High repeatability
🔹 3. CNC Precision Boring Cartridge
Designed for CNC machining centers for automated and repeatable operations.
✔ Applications:
-
Production machining
-
High-volume components
-
Precision engineering industries
🔹 4. Rigibore Equivalent Cartridge
Advanced design similar to Rigibore systems offering:
-
Micro-adjustment capability
-
High stiffness
-
Vibration-free machining
-
Excellent bore accuracy
Advantages of CNC Boring Bar Cartridge
High Precision Machining
Achieve extremely accurate bore diameters with minimal deviation.
Reduced Tooling Cost
No need for frequent tool replacement or grinding.
Faster Setup Time
Quick adjustments improve production efficiency.
Better Surface Finish
Stable cutting reduces vibration marks and improves finish quality.
High Repeatability
Perfect for batch production and mass manufacturing.
Applications of Boring Bar Cartridge
Boring bar cartridges are widely used in:
-
Automotive industry
-
Aerospace manufacturing
-
Hydraulic & pneumatic components
-
Bearing housing production
-
Mold & die industries
-
General CNC machining centers
-
Precision engineering workshops
How to Choose the Right Boring Cartridge
When selecting a CNC boring cartridge, consider:
Machine Compatibility
Ensure compatibility with your VMC or CNC machine spindle system.
Bore Size Range
Choose based on minimum and maximum diameter requirements.
Accuracy Requirement
For high-precision work, select fine-adjustment systems.
Material Strength
Prefer rigid carbide or alloy steel construction for stability.
Type of Operation
-
Rough boring → Standard cartridge
-
Finish boring → Fine adjustable cartridge
Maintenance Tips
✔ Keep cartridge clean and free from chips ✔ Lubricate adjustment mechanism regularly ✔ Store in protective casing ✔ Avoid over-tightening adjustment screws ✔ Inspect for wear periodically
Why Boring Bar Cartridges Are Important in CNC Machining
Modern manufacturing demands high precision and repeatability. Boring bar cartridges help achieve:
-
Micron-level accuracy
-
Reduced machining errors
-
Faster production cycles
-
Better surface finish
-
Lower rejection rates
They are essential tools for industries focused on precision engineering and mass production.
Why Buy Boring Bar Cartridges from Makeyoueasy?
At Makeyoueasy, we provide reliable CNC tooling solutions, including:
-
Boring Bar Cartridges
-
Turning Inserts
-
Milling Inserts
-
Threading Inserts
-
Grooving Inserts
-
ER Collets
-
Tool Holders
-
Pull Studs
-
Zero Adjustment Nuts
-
Locking Devices
-
Coolant Systems
-
Lubrication Systems
-
Hydraulic Systems
-
Pneumatic Systems
Our products are designed for precision, durability, and industrial performance.
Conclusion
A Boring Bar Cartridge (Rigibore Equivalent) is an essential tool for achieving high-precision internal machining. With micro-adjustment capability, rigid construction, and excellent accuracy, it is widely used in industries requiring tight tolerances and superior surface finishes.
For reliable CNC tooling solutions, explore the full range of Boring Bar Cartridges, CNC Cutting Tools, and Machine Accessories at Makeyoueasy and enhance your machining performance.
Frequently Asked Questions (FAQ)
What is a Boring Bar Cartridge?
A boring bar cartridge is a precision adjustable tool used for fine boring operations in CNC machines.
What is a Rigibore equivalent cartridge?
It is an adjustable boring system designed for micro-level diameter correction, similar to Rigibore systems.
Where is a boring cartridge used?
It is used in CNC machining centers, VMC machines, and precision engineering applications.
What is the advantage of adjustable boring tools?
They provide high accuracy, reduced tool changes, and better surface finish.
Where can I buy CNC boring cartridges in India?
You can explore high-quality boring bar cartridges at www.makeyoueasy.com
